日本佑能UNNION避空型圓角刀CRRS系列4刃硬
品牌：UNION(佑能)
型號：G5ACB32B40B2DD
￥待詢價（提交訂單10分鐘內獲取專屬報價單）
| 加工材料 | |||||||||||||||
| 碳素鋼 S45C S55C | 合金鋼 SK/SCM SUS | 預硬鋼 NAK HPM | 淬火鋼 | 鑄鐵 | 鋁合金 | 石墨 | 銅 | 樹脂 | 玻璃纖維 樹脂 | 鈦合金 | 高溫合金 | 超硬合金 | 硬脆材料 | ||
| ~55HRC | ~60HRC | ~70HRC | |||||||||||||
| ◎ | ◎ | ◎ | ◎ | ○ | ○ | ◎ | ◎ | ◎ | |||||||

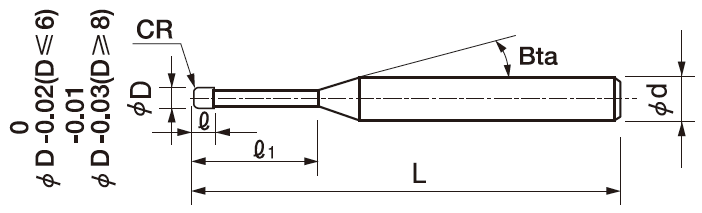

| 型號 | 直徑 φD | 圓角半徑 CR | 有效長 R1 | 刃長 R | 首徑 φd1 | 柄錐角度 Bta | 全長 L | 柄徑 φd |
| CRRS 4020-05-06 | 2 | R0.5 | 6 | 2 | 1.91 | 16° | 70 | 4 |
| CRRS 4030-08-09 | 3 | R0.8 | 9 | 3 | 2.92 | 16° | 70 | 6 |
| CRRS 4040-03-12 | 4 | R0.3 | 12 | 4 | 3.82 | 16° | 60 | 6 |
| CRRS 4040-05-12-4 | R0.5 | — | 70 | 4 | ||||
| CRRS 4040-05-12 | 16° | 60 | 6 | |||||
| CRRS 4040-10-12-4 | R1.0 | — | 70 | 4 | ||||
| CRRS 4040-10-12 | 16° | 70 | 6 | |||||
| CRRS 4050-12-15 | 5 | R1.2 | 15 | 5 | 4.82 | 16° | 70 | 6 |
| CRRS 4060-03-18 | 6 | R0.3 | 18 | 6 | 5.82 | — | 90 | 6 |
| CRRS 4060-05-18 | R0.5 | 60 | 6 | |||||
| CRRS 4060-10-18 | R1.0 | 60 | 6 | |||||
| CRRS 4060-15-18 | R1.5 | 90 | 6 | |||||
| CRRS 4080-03-24 | 8 | R0.3 | 24 | 8 | 7.82 | — | 100 | 8 |
| CRRS 4080-05-26 | R0.5 | 26 | 70 | 8 | ||||
| CRRS 4080-10-26 | R1.0 | 70 | 8 | |||||
| CRRS 4080-20-24 | R2.0 | 24 | 100 | 8 | ||||
| CRRS 4100-03-30 | 10 | R0.3 | 30 | 10 | 9.82 | — | 110 | 10 |
| CRRS 4100-05-30 | R0.5 | 80 | 10 | |||||
| CRRS 4100-10-30 | R1.0 | 80 | 10 | |||||
| CRRS 4100-20-30 | R2.0 | 110 | 10 | |||||
| CRRS 4120-03-36 | 12 | R0.3 | 36 | 12 | 11.82 | — | 120 | 12 |
| CRRS 4120-05-36 | R0.5 | 120 | 12 | |||||
| CRRS 4120-10-36 | R1.0 | 120 | 12 | |||||
| CRRS 4120-20-36 | R2.0 | 120 | 12 |
| 加工材料 | 碳素鋼 S45C/S55C (~225HB) | 合金鋼 SK/SCM/SUS(225~325HB) 注：不銹鋼加工推薦使用切削液 | 預硬鋼/淬火鋼 NAK/HPM/SKD/SKT/ STAVAX(30~55HRC) 注：推薦使用油霧 | |||||||||||

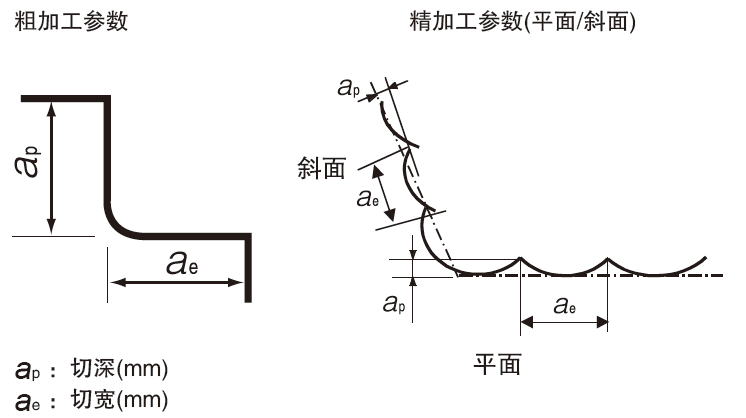

| 型號 | 直徑 (mm) | 圓角半徑 (mm) | 轉速 (min-1) | 進給 (mm/min) | ap (mm) | ae (mm) | 轉速 (min-1) | 進給 (mm/min) | ap (mm) | ae (mm) | 轉速 (min-1) | 進給 (mm/min) | ap (mm) | ae (mm) |
| 4020-05-06 | 2 | R0.5 | 30,000 | 7,200 | 0.08 | 0.8 | 30,000 | 7,200 | 0.04 | 0.66 | 24,000 | 7,000 | 0.02 | 0.59 |
| 4030-08-09 | 3 | R0.8 | 20,000 | 8,400 | 0.09 | 1.2 | 20,000 | 7,200 | 0.04 | 1.08 | 16,000 | 7,000 | 0.04 | 0.88 |
| 4040-03-12 | 4 | R0.3 | 15,000 | 9,600 | 0.09 | 1.6 | 15,000 | 7,200 | 0.05 | 1.32 | 12,000 | 7,000 | 0.05 | 1.17 |
| 4040-05-12-4 | R0.5 | 15,000 | 9,600 | 0.1 | 1.6 | 15,000 | 7,200 | 0.05 | 1.35 | 12,000 | 7,000 | 0.05 | 1.26 | |
| 4040-05-12 | 15,000 | 9,600 | 0.1 | 1.6 | 15,000 | 7,200 | 0.05 | 1.35 | 12,000 | 7,000 | 0.05 | 1.26 | ||
| 4040-10-12-4 | R1 | 15,000 | 9,600 | 0.11 | 1.6 | 15,000 | 7,200 | 0.05 | 1.53 | 12,000 | 7,000 | 0.06 | 1.33 | |
| 4040-10-12 | 15,000 | 9,600 | 0.11 | 1.6 | 15,000 | 7,200 | 0.05 | 1.53 | 12,000 | 7,000 | 0.06 | 1.33 | ||
| 4050-12-15 | 5 | R1.2 | 12,000 | 10,800 | 0.13 | 2 | 12,000 | 7,200 | 0.06 | 1.8 | 9,600 | 6,300 | 0.06 | 1.54 |
| 4060-03-18 | 6 | R0.3 | 10,000 | 12,000 | 0.13 | 2.4 | 10,000 | 7,200 | 0.07 | 1.94 | 8,000 | 5,250 | 0.07 | 1.63 |
| 4060-05-18 | R0.5 | 10,000 | 12,000 | 0.14 | 2.4 | 10,000 | 7,200 | 0.07 | 1.98 | 8,000 | 5,250 | 0.07 | 1.75 | |
| 4060-10-18 | R1 | 10,000 | 12,000 | 0.15 | 2.4 | 10,000 | 7,200 | 0.07 | 2.16 | 8,000 | 5,250 | 0.08 | 1.75 | |
| 4060-15-18 | R1.5 | 10,000 | 12,000 | 0.17 | 2.4 | 10,000 | 7,200 | 0.08 | 2.34 | 8,000 | 5,250 | 0.11 | 1.75 | |
| 4080-03-24 | 8 | R0.3 | 7,500 | 12,000 | 0.17 | 2.86 | 7,500 | 7,200 | 0.08 | 2.76 | 6,000 | 4,100 | 0.15 | 1.77 |
| 4080-05-26 | R0.5 | 7,500 | 12,000 | 0.18 | 2.64 | 7,500 | 7,200 | 0.08 | 2.61 | 6,000 | 4,100 | 0.14 | 1.76 | |
| 4080-10-26 | R1 | 7,500 | 12,000 | 0.18 | 2.72 | 7,500 | 7,200 | 0.09 | 2.7 | 6,000 | 4,100 | 0.16 | 1.76 | |
| 4080-20-24 | R2 | 7,500 | 12,000 | 0.22 | 2.88 | 7,500 | 7,200 | 0.1 | 2.79 | 6,000 | 4,100 | 0.18 | 1.96 | |
| 4100-03-30 | 10 | R0.3 | 6,000 | 12,000 | 0.2 | 3.04 | 5,000 | 5,400 | 0.14 | 2.82 | 4,800 | 4,100 | 0.18 | 1.89 |
| 4100-05-30 | R0.5 | 6,000 | 12,000 | 0.22 | 3.04 | 5,000 | 5,400 | 0.14 | 2.88 | 4,800 | 4,100 | 0.18 | 2.03 | |
| 4100-10-30 | R1 | 6,000 | 12,000 | 0.24 | 3.28 | 5,000 | 5,400 | 0.14 | 2.97 | 4,800 | 4,100 | 0.19 | 2.1 | |
| 4100-20-30 | R2 | 6,000 | 12,000 | 0.26 | 3.44 | 5,000 | 5,400 | 0.14 | 3.06 | 4,800 | 4,100 | 0.2 | 2.45 | |
| 4120-03-36 | 12 | R0.3 | 5,000 | 12,000 | 0.21 | 3.32 | 3,000 | 4,320 | 0.18 | 2.9 | 4,000 | 4,100 | 0.19 | 2.15 |
| 4120-05-36 | R0.5 | 5,000 | 12,000 | 0.24 | 3.32 | 3,000 | 4,320 | 0.18 | 2.96 | 4,000 | 4,100 | 0.19 | 2.32 | |
| 4120-10-36 | R1 | 5,000 | 12,000 | 0.26 | 3.59 | 3,000 | 4,320 | 0.18 | 3.06 | 4,000 | 4,100 | 0.2 | 2.4 | |
| 4120-20-36 | R2 | 5,000 | 12,000 | 0.28 | 3.76 | 3,000 | 4,320 | 0.18 | 3.15 | 4,000 | 4,100 | 0.21 | 2.8 | |
| 加工材料 | 碳素鋼 S45C/S55C (~225HB) | 合金鋼 SK/SCM/SUS(225~325HB) 注：不銹鋼加工推薦使用切削液 | 預硬鋼/淬火鋼 NAK/HPM/SKD/SKT/ STAVAX(30~55HRC) 注：推薦使用油霧 | |||||||||||
| 型號 | 直徑 (mm) | 圓角半徑 (mm) | 轉速 (min-1) | 進給 (mm/min) | ap (mm) | ae (mm) | 轉速 (min-1) | 進給 (mm/min) | ap (mm) | ae (mm) | 轉速 (min-1) | 進給 (mm/min) | ap (mm) | ae (mm) |
| 4020-05-06 | 2 | R0.5 | 30,000 | 1,720 | 0.1 | 0.06 | 30,000 | 1,510 | 0.05 | 0.05 | 24,000 | 1,070 | 0.05 | 0.04 |
| 4030-08-09 | 3 | R0.8 | 20,000 | 1,890 | 0.1 | 0.09 | 20,000 | 1,660 | 0.05 | 0.08 | 16,000 | 1,160 | 0.05 | 0.07 |
| 4040-03-12 | 4 | R0.3 | 15,000 | 1,050 | 0.1 | 0.07 | 15,000 | 910 | 0.05 | 0.06 | 12,000 | 620 | 0.05 | 0.05 |
| 4040-05-12-4 | R0.5 | 15,000 | 1,360 | 0.1 | 0.09 | 15,000 | 1,180 | 0.05 | 0.08 | 12,000 | 810 | 0.05 | 0.07 | |
| 4040-05-12 | 15,000 | 1,360 | 0.1 | 0.09 | 15,000 | 1,180 | 0.05 | 0.08 | 12,000 | 810 | 0.05 | 0.07 | ||
| 4040-10-12-4 | R1 | 15,000 | 1,920 | 0.1 | 0.13 | 15,000 | 1,670 | 0.05 | 0.11 | 12,000 | 1,150 | 0.05 | 0.1 | |
| 4040-10-12 | 15,000 | 1,920 | 0.1 | 0.13 | 15,000 | 1,670 | 0.05 | 0.11 | 12,000 | 1,150 | 0.05 | 0.1 | ||
| 4050-12-15 | 5 | R1.2 | 12,000 | 1,910 | 0.1 | 0.16 | 12,000 | 1,630 | 0.05 | 0.14 | 9,600 | 1,120 | 0.05 | 0.12 |
| 4060-03-18 | 6 | R0.3 | 10,000 | 890 | 0.2 | 0.09 | 10,000 | 760 | 0.1 | 0.08 | 8,000 | 510 | 0.1 | 0.06 |
| 4060-05-18 | R0.5 | 10,000 | 1,150 | 0.2 | 0.12 | 10,000 | 990 | 0.1 | 0.1 | 8,000 | 670 | 0.1 | 0.08 | |
| 4060-10-18 | R1 | 10,000 | 1,630 | 0.2 | 0.16 | 10,000 | 1,400 | 0.1 | 0.14 | 8,000 | 950 | 0.1 | 0.12 | |
| 4060-15-18 | R1.5 | 10,000 | 2,000 | 0.2 | 0.2 | 10,000 | 1,720 | 0.1 | 0.17 | 8,000 | 1,170 | 0.1 | 0.15 | |
| 4080-03-24 | 8 | R0.3 | 7,500 | 1,170 | 0.2 | 0.11 | 7,500 | 1,050 | 0.1 | 0.09 | 6,000 | 720 | 0.1 | 0.08 |
| 4080-05-26 | R0.5 | 7,500 | 990 | 0.2 | 0.13 | 7,500 | 860 | 0.1 | 0.11 | 6,000 | 580 | 0.1 | 0.1 | |
| 4080-10-26 | R1 | 7,500 | 1,410 | 0.2 | 0.19 | 7,500 | 1,210 | 0.1 | 0.16 | 6,000 | 830 | 0.1 | 0.14 | |
| 4080-20-24 | R2 | 7,500 | 1,990 | 0.2 | 0.27 | 7,500 | 1,720 | 0.1 | 0.23 | 6,000 | 1,170 | 0.1 | 0.2 | |
| 4100-03-30 | 10 | R0.3 | 6,000 | 720 | 0.2 | 0.12 | 5,000 | 510 | 0.1 | 0.1 | 4,800 | 400 | 0.1 | 0.08 |
| 4100-05-30 | R0.5 | 6,000 | 940 | 0.2 | 0.16 | 5,000 | 660 | 0.1 | 0.13 | 4,800 | 520 | 0.1 | 0.11 | |
| 4100-10-30 | R1 | 6,000 | 1,330 | 0.2 | 0.22 | 5,000 | 940 | 0.1 | 0.19 | 4,800 | 740 | 0.1 | 0.15 | |
| 4100-20-30 | R2 | 6,000 | 1,890 | 0.2 | 0.32 | 5,000 | 1,340 | 0.1 | 0.27 | 4,800 | 1,050 | 0.1 | 0.22 | |
| 4120-03-36 | 12 | R0.3 | 5,000 | 680 | 0.2 | 0.14 | 3,000 | 330 | 0.1 | 0.1 | 4,000 | 360 | 0.1 | 0.09 |
| 4120-05-36 | R0.5 | 5,000 | 880 | 0.2 | 0.18 | 3,000 | 430 | 0.1 | 0.14 | 4,000 | 480 | 0.1 | 0.12 | |
| 4120-10-36 | R1 | 5,000 | 1,240 | 0.2 | 0.24 | 3,000 | 610 | 0.1 | 0.2 | 4,000 | 680 | 0.1 | 0.16 | |
| 4120-20-36 | R2 | 5,000 | 1,760 | 0.2 | 0.35 | 3,000 | 870 | 0.1 | 0.29 | 4,000 | 960 | 0.1 | 0.24 | |
| 突出長 L/D | 轉速 (min-1) | 進給 (mm/min) | ap (mm) | ae (mm) |
| L/D≤6 | ×1 | ×1 | ×1 | ×1 |
| L/D＝7 | ×0.8 | ×0.8 | ×0.8 | ×0.9 |
| L/D＝8 | ×0.7 | ×0.7 | ×0.7 | ×0.9 |
| L/D＝9 | ×0.7 | ×0.7 | ×0.6 | ×0.8 |
| L/D＝10 | ×0.6 | ×0.6 | ×0.6 | ×0.7 |
| 突出長 L/D | 轉速 (min-1) | 進給 (mm/min) | ap (mm) | ae (mm) |
| L/D≤4 | ×1 | ×1 | ×1 | ×1 |
| L/D＝5 | ×0.9 | ×0.8 | ×0.9 | ×0.9 |
| L/D＝6 | ×0.8 | ×0.7 | ×0.8 | ×0.9 |
| L/D＝7 | ×0.7 | ×0.6 | ×0.6 | ×0.8 |
| L/D＝8 | ×0.5 | ×0.4 | ×0.6 | ×0.7 |
| 突出長 L/D | 轉速 (min-1) | 進給 (mm/min) | ap (mm) | ae (mm) |
| L/D≤4 | ×1 | ×1 | ×1 | ×1 |
| L/D＝5 | ×0.7 | ×0.6 | ×0.6 | ×0.8 |
| L/D＝6 | ×0.5 | ×0.4 | ×0.5 | ×0.7 |
